The geomembrane welding machine is a essential tool in modern geosynthetic applications, offering precision, efficiency, and versatility for creating durable, impermeable seams. From its advanced features like precise temperature control and automated operation to its ability to weld diverse geomembrane materials like HDPE, PVC, LLDPE, LDPE and PP, the geomembrane welding machine meets the demands of complex projects. Its advantages, including high weld strength, cost-effectiveness, and environmental compliance, make it an essential investment for industries ranging from waste management to water conservation.
Whether you’re sealing a landfill or constructing a reservoir, selecting a high-quality geomembrane welding machine and leveraging manufacturer support will drive project success. For further guidance or to explore specific models, contact us to find the perfect solution for your needs.

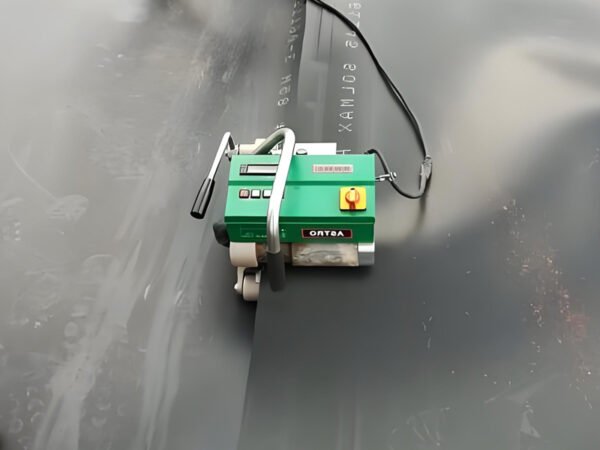

A geomembrane welding machine is a specialized device designed to join geomembrane sheets, creating seamless, impermeable barriers for containment applications. Geomembranes, typically made from materials like high-density polyethylene (HDPE), polyvinyl chloride (PVC), or polypropylene (PP), are used to prevent seepage in projects such as landfill liners, pond liners, and water management systems. The geomembrane welding machine employs thermal or chemical processes to fuse overlapping geomembrane layers, ensuring a strong, durable bond that withstands environmental stressors.
These machines are engineered for precision, allowing operators to control temperature, speed, and pressure to achieve consistent welds. Common welding techniques include hot wedge welding, hot air welding, and extrusion welding, each suited to specific materials and project requirements. A geomembrane welding machine is indispensable in creating reliable seals, ensuring the integrity of containment systems and compliance with environmental regulations. Its versatility and efficiency make it a cornerstone of geosynthetic installations worldwide.

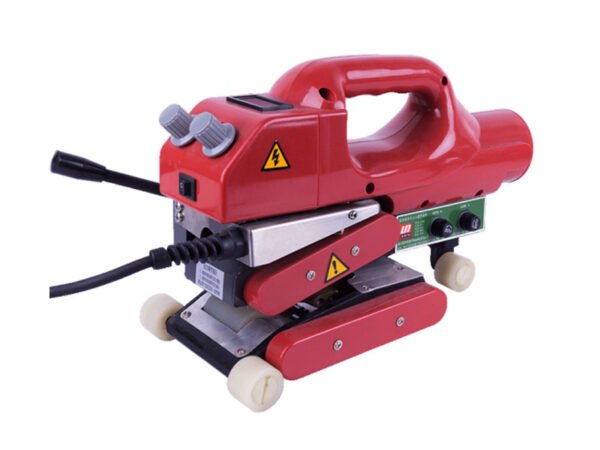

| NO | Model Reference | Hot Wedge Welder, mid-to-high range available |
| 1 | Voltage | 220V ± 5% (Optional: 110V) |
| 2 | Frequency | 50/60 Hz |
| 3 | Power Consumption | 1800W (Range: 800W–2500W) |
| 4 | Weight | 10 ~ 20 kg (Gross) |
| 5 | Adaptive Material | Can handle HDPE, LLDPE, LDPE, PP and PVC |
| 6 | Warranty | 12- 24 months |
Geomembrane welding machines are equipped with advanced features that enhance their performance and usability. Below are the key characteristics that define a high-quality geomembrane welding machine:
A geomembrane welding machine typically offers adjustable temperature settings, ranging from 0 to 450°C, to suit different geomembrane materials and thicknesses. PID automatic thermostatic control ensures high accuracy and minimal temperature fluctuation, resulting in consistent welds.
Welding speeds, often adjustable from 0.5 to 8 m/min, allow operators to optimize the geomembrane welding machine for specific project needs. This flexibility ensures efficient operation across various material types and environmental conditions.
Modern geomembrane welding machines are compact and lightweight, with models weighing as little as 7.5 kg. This portability enhances operability on-site, particularly in challenging terrains like tunnels or landfills.
High-quality components and advanced control systems contribute to the long service life of a geomembrane welding machine. Models like those from Miller Weldmaster feature robust designs that withstand harsh working environments.
Many geomembrane welding machines incorporate mechatronics integration, enabling automatic crawling and welding of tilted, vertical, or inverted surfaces. This automation reduces manual labor and improves seam consistency.
Safety is paramount, and geomembrane welding machines include protective elements like insulated handles, safety goggles requirements, and non-toxic welding processes to ensure operator safety and environmental compliance.
These features collectively make the geomembrane welding machine a reliable and efficient tool for creating durable, high-quality welds in geosynthetic applications.
The geomembrane welding machine serves multiple functions, each critical to ensuring the integrity of geomembrane installations. Below are the primary functions:

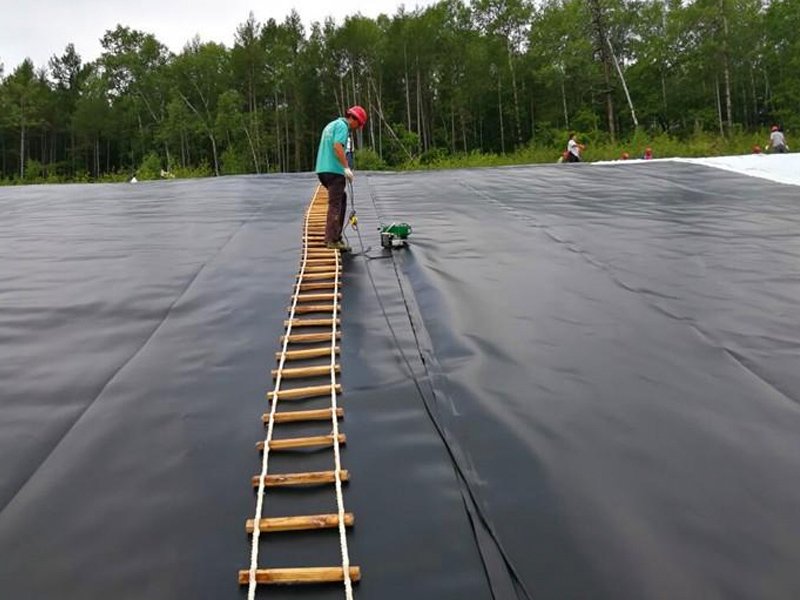

The core function of a geomembrane welding machine is to fuse geomembrane sheets, forming watertight seams that prevent leakage. This is essential for applications like landfill liners and water containment systems.
Geomembrane welding machines support various methods, including hot wedge, hot air, and extrusion welding. Each technique is tailored to specific materials and project conditions, ensuring versatility.
By automating the welding process, a geomembrane welding machine reduces labor and installation time. Automated systems can weld multiple seams simultaneously, boosting productivity on large-scale projects.
Geomembrane welding machines facilitate quality assurance through features like data acquisition systems that record welding parameters (temperature, speed, pressure). This enables post-weld analysis and compliance with standards like ASTM D8468.
The flexibility of a geomembrane welding machine allows it to weld seams on vertical surfaces, curves, or irregular shapes, making it suitable for complex projects like tunnels or aquaculture ponds.
These functions underscore the geomembrane welding machine’s role in delivering reliable, high-performance containment solutions across industries.
Geomembrane welding machines are designed to handle a variety of geomembrane materials, each with unique properties suited to specific applications. Below are the primary types of geomembranes compatible with a geomembrane welding machine:
HDPE is the most commonly welded geomembrane due to its durability and chemical resistance. A geomembrane welding machine uses hot wedge or hot air techniques to create strong seams for HDPE liners in landfills, mining, and water management.
PVC geomembranes are flexible and ideal for applications like decorative ponds and sewage lagoons. Hot air welding is typically used, as PVC softens easily with heat, ensuring reliable bonds.
LDPE offers greater flexibility than HDPE, making it suitable for projects requiring conformability. A geomembrane welding machine can weld LDPE using hot wedge or extrusion methods, ensuring secure seams.
PP geomembranes are resistant to UV radiation and chemicals, often used in exposed applications. Geomembrane welding machines employ hot air or hot wedge welding to join PP sheets effectively.
EVA geomembranes are highly flexible and used in applications like aquaculture. A geomembrane welding machine uses hot air welding to create durable seams for EVA liners.
Urethane-based geomembranes and other specialty materials can be welded using chemical or hot air methods, depending on their composition. A geomembrane welding machine’s versatility accommodates these niche materials.
The ability of a geomembrane welding machine to weld diverse materials ensures its applicability across a wide range of projects, from environmental remediation to infrastructure development.
The advantages of a geomembrane welding machine extend beyond its technical capabilities, offering practical benefits that enhance project outcomes. Here are the primary advantages:
A geomembrane welding machine produces seams with strength comparable to the base material, often achieving ≥85% tensile resistance. This ensures long-lasting, reliable containment systems.
The welding process is non-toxic, odorless, and pollution-free, using electric heating fusion technology. This aligns with environmental regulations and supports sustainable practices.
Automated features and high welding speeds (up to 8 m/min) reduce labor costs and installation time. A geomembrane welding machine can produce 40+ feet per minute for polyethylene liners, enhancing productivity.
The ability to weld various geomembrane types and handle complex geometries makes a geomembrane welding machine suitable for diverse applications, from landfills to fish breeding ponds.
By minimizing field seams and reducing the need for manual labor, a geomembrane welding machine lowers installation costs. Its durability also reduces maintenance expenses over time.
Data acquisition systems and testing capabilities, such as peel and shear tests, ensure weld quality meets industry standards, reducing the risk of failures and costly repairs.
These advantages position the geomembrane welding machine as a strategic investment for projects requiring robust, efficient, and environmentally responsible solutions.
