In the field of geosynthetics, selecting the correct liner for demanding containment projects is a critical engineering decision. For applications requiring superior slope stability, increased interface friction, and enhanced performance on challenging terrains, HDPE textured geomembranes have become the material of choice. Unlike their smooth counterparts, these liners feature a specially engineered surface that provides exceptional grip, making them indispensable for landfill caps, steep reservoir slopes, and other high-risk installations. This review for 2026 analyzes the top six HDPE textured geomembranes on the market, drawing on technical specifications, industry testing standards, and real-world performance data to guide your selection.
1.Why HDPE Textured Geomembranes Are Essential
Textured HDPE geomembranes provide solutions where standard liners might fail. Their primary function is to increase the interface shear strength between the geomembrane and adjacent materials like soils or geotextiles. This is crucial for maintaining the integrity of slopes, where smooth liners could potentially slip. Furthermore, the textured surface offers improved **puncture and tear resistance** during and after installation, as well as better **stress distribution** across the liner surface.
Lorem ipsum dolor sat amet，consectetur adipiscing elit。 Ut elittellus，luctus nec ullamcorper mattis，pulvinar dapibus leo.
1.1Key Features to Evaluate
When comparing HDPE textured geomembranes, focus on these critical, data-driven specifications:
* Texture Type and Profile: Textures are typically co-extruded (most common and durable) or impinged. The asperity height (the height of the texture bumps) is a key metric, commonly ranging from 0.25mm to 0.80mm, which directly influences frictional performance.
* Interface Shear Strength: This is the core performance indicator. Look for peak and residual shear strength values tested against standard soils (e.g., sand, clay) under conditions like ASTM D5321. Higher values indicate better slope stability.
* Physical and Mechanical Properties: Ensure high tensile strength (ASTM D6693), tear resistance (ASTM D1004), and puncture resistance (ASTM D4833). Premium liners, like BPM’s HDPE variant, use virgin resin with carbon black for outstanding durability.
* Chemical and UV Resistance: HDPE inherently offers excellent chemical resistance across a wide pH range. The inclusion of 2-3% carbon black provides long-term UV stabilization, with top products retaining 70-80% of tensile strength after prolonged accelerated aging tests.
2.Top 6 HDPE Textured Geomembranes of 2026
Our selections are based on technical data, manufacturing quality, and proven performance in field applications.

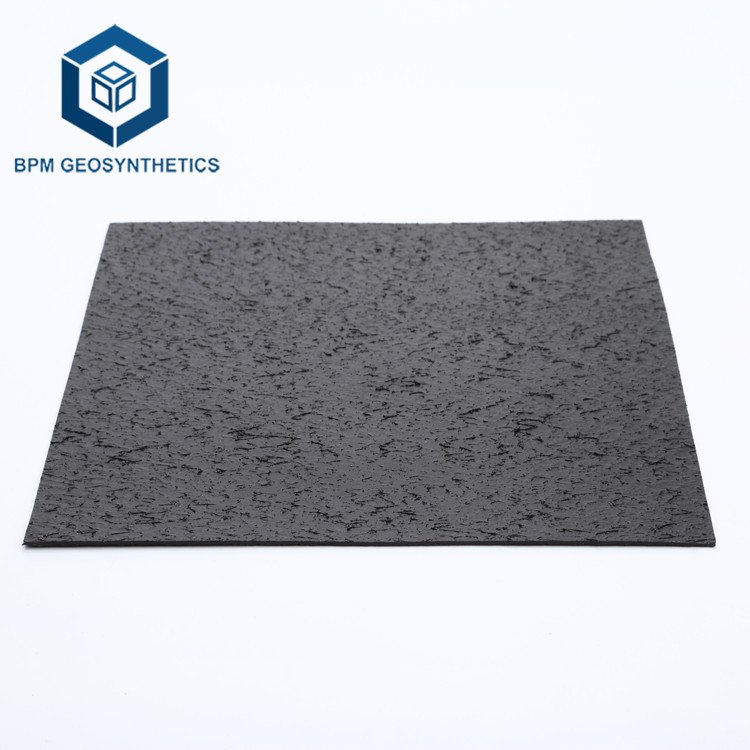

2.1.BPM Textured HDPE Geomembrane
Category: Premium All-Purpose Textured Liner
* Material: 97.5% virgin HDPE with co-extruded texture
* Thickness:1.0 mm (40 mil) and other gauges
* Tensile Strength: 28 kN/m (MD & TD per ASTM D6693)
* Texture Asperity Height: 0.50 – 0.70 mm
* Key Feature:Excellent interface friction with both geosynthetics and soils, coupled with the proven chemical resistance and ultra-low permeability (\(\leq 10^{-11}\) cm/s) highlighted in the source review. Its wide rolls (up to 8m) reduce seams by 20%.
Overview:
BPM’s textured geomembrane builds upon the proven performance of their standard HDPE liner, adding a co-extruded textured surface for demanding applications. It is engineered for stability on slopes and in landfill lining systems where maximum interface shear strength is required. The use of premium resins ensures low stress cracking and a long service life, making it a cost-effective solution over the project lifecycle.
2.2.GSE Textured HDPE Geomembrane
Category: High-Friction Slope Liner
* Material: Virgin HDPE with impinged surface texture
* Thickness: 1.5 mm (60 mil) standard for heavy-duty use
* Tensile Strength: 40 kN/m
* Key Feature: Specifically engineered for very steep slope applications, with exceptionally high shear strength values documented in project case studies.
Overview:
GSE’s offering is a go-to for engineers designing containment systems with challenging geometries. The aggressive texture pattern is designed to mechanically lock with overlying and underlying materials, providing a significant safety factor against slope failure. It is a robust choice for landfill caps and sidewalls, heap leach pads, and reservoirs in uneven terrain.
2.3.Agru America Textured HDPE
Category: Fine-Texture Multifunctional Liner
* Material: High-density polyethylene with a micro-textured surface
* Thickness: Range from 0.75mm to 2.5mm
* Key Feature: Micro-textured surface provides enhanced friction while maintaining excellent multi-axial strain capability, allowing it to conform to subgrade irregularities without stress concentrations.
Overview:
Agru’s texture is distinct, offering a balance between increased friction and maintained flexibility. This makes it suitable not only for slopes but also for base liners where subgrade settlement might occur. Its quality control and consistency are highly regarded for large-scale, environmentally sensitive projects.
2.4.Solmax DuraGrip Textured HDPE
Category: Durable, Chemically Resistant Textured Liner
* Material: Stabilized HDPE resin with co-extruded texture
* Key Feature: Formulated for extreme environmental exposure, including harsh UV climates and contact with a wide array of chemicals, while providing reliable frictional performance.
Overview:
Solmax DuraGrip is built for longevity in the toughest conditions, such as mining and industrial waste containment. The texture is integrated during the extrusion process, ensuring it won’t delaminate. It is designed to perform reliably in projects with a mandated multi-decade service life.
2.5.NAUE Secutex®-T Geomembrane
Category: Textured Liner with Integrated Protection
* Material:HDPE with a structured, needle-punched texture.
* Key Feature: The unique texture is designed to intimately bond with geotextiles, creating a high-shear-strength composite system. This is ideal for exposed geomembrane covers or lining systems requiring high interface strength with protective layers.
Overview:
NAUE’s approach focuses on system performance. The Secutex®-T surface maximizes the interaction with non-woven geotextiles, effectively creating a reinforced composite material. This is an excellent solution for applications where the geomembrane may be exposed to wind uplift forces or where a geotextile separation/protection layer is critical.
2.6.Carthage Mills Textured HDPE Liner
Category: Value-Conscious, Reliable Textured Option
* Material: HDPE with co-extruded textured surface.
* Key Feature: Offers the core benefits of a textured HDPE geomembrane—improved slope stability and puncture resistance—at a highly competitive price point, making it accessible for a wider range of projects.
Overview:
Carthage Mills provides a dependable textured geomembrane for projects where budget is a key consideration but performance cannot be compromised. It is well-suited for agricultural reservoirs, pond liners on moderate slopes, and other water containment applications where increased friction is needed without the extreme specifications required for landfill or mining.
3. How to Choose the Right Textured HDPE Geomembrane
Follow this decision framework to select the perfect liner for your project:
3.1 Define the Primary Need: Is it for a steep slope (prioritize highest shear strength), chemical containment (prioritize resin quality and thickness), or general use with improved safety (a balanced, all-purpose textured liner)?
3.2 Review Geotechnical Data: The soil type (sand, clay, silt) of the adjacent layers will determine the required interface shear strength. Consult with your supplier to match texture asperity height to your specific soil conditions.
3.3 Confirm Technical Specifications: Always request and review third-party test data for critical properties: tensile properties, tear resistance, and most importantly, nterface shear strength testing (ASTM D5321) relevant to your project materials.
3.4Consider Installation Factors: Wider rolls(like BPM’s 8m rolls) reduce seaming. Ensure the contractor has experience welding the specific textured product you select, as texture can sometimes require slight adjustments in welding parameters.
4.Conclusion
For any containment project where slope stability, interface friction, and long-term integrity are non-negotiable, a textured HDPE geomembrane is a wise investment. From the premium, all-round performance of BPM’s textured liner to the specialized slope security of GSE’s product, the market offers a solution for every technical and budgetary requirement. By focusing on the data—asperity height, shear strength values, and mechanical properties—you can specify a liner that will provide secure, lasting protection for decades.
I hope this detailed review is helpful for your project planning. If you have a specific application in mind (like a landfill slope, mining leach pad, or water reservoir), I can offer more tailored insights on what to prioritize in your selection.
