1.What is PVC Geomembrane Liner?
PVC Geomembrane Liner is an impermeable synthetic membrane made from High-Density Polyethylene (PVC) resin, widely used for containment, lining, and waterproofing in civil, environmental, and industrial applications.
Primary Material: PVC resin (≥97% purity)
Additives: Carbon black (2-3% for UV resistance)
Antioxidants (prevents degradation)
Stabilizers (enhances durability)
So PVC geomembrane liners are one of the most widely used synthetic materials in civil engineering, environmental protection, and mining industries. Known for their durability, chemical resistance, and impermeability, PVC liners are essential in applications such as landfills, water reservoirs, mining leach pads, and agricultural ponds.
BPM Geomembrane is a leading manufacturer of high-quality PVC liners, offering superior performance in demanding environments.
2.Key Advantages of PVC Geomembrane Liner
2.1.Excellent Chemical Resistance
PVC geomembranes are highly resistant to acids, alkalis, oils, and industrial chemicals, making them ideal for hazardous waste containment, mining operations, and chemical storage.
2.2. Superior UV & Weather Resistance
Unlike PVC or LLDPE liners, PVC liners (especially those with carbon black additives) can withstand prolonged UV exposure without degradation, ensuring long-term performance in outdoor applications.
2.3.High Tensile Strength & Puncture Resistance
BPM’s PVC geomembranes have high tensile strength (up to 40 MPa) and puncture resistance, making them suitable for heavy-duty applications like landfill caps and mining heap leach pads.
2.4.Low Permeability (Excellent Waterproofing)
With permeability coefficients as low as 1×10⁻¹³ cm/s, PVC liners effectively prevent seepage in water storage ponds, tailings dams, and irrigation canals.
2.5.Long Service Life (50+ Years)
Due to their resistance to oxidation, biological degradation, and extreme temperatures, PVC liners can last over 50 years, reducing long-term maintenance costs.
2.6.Cost-Effective & Easy to Weld
PVC liners are cost-efficient compared to concrete or clay alternatives. They can be thermally welded for seamless installation, minimizing leakage risks.
3.Properties of PVC Geomembrane Liner
3.1.High Density:
PVC liners geomembranes have a high density, typically above 0.94 g/cm³, which contributes to their strength and durability.
3.2.Excellent Chemical Resistance:
PVC is highly resistant to a wide range of chemicals, including acids, bases, and many organic compounds. This makes it suitable for applications involving hazardous substances.
3.3.Low Permeability:
PVC liner geomembranes have very low permeability, making them highly effective for preventing the migration of liquids and gases.
3.4.Durability:
PVC is resistant to UV degradation, weathering, and biological degradation, ensuring long-term performance in outdoor applications.
3.5.Flexibility:
Despite its high density, PVC geomembrane Liner remains flexible, allowing it to conform to various shapes and surfaces.
3.6.Tensile Strength:
PVC geomembranes have high tensile strength and elongation properties, which help them withstand mechanical stresses.
4.Applications of PVC liner Geomembrane
PVC liners are used in various industries, including:
4.1.Mining Industry (Zambia’s Copper & Cobalt Mines)
Heap leach pads (preventing toxic seepage)
Tailings storage facilities (TSFs)
Acid containment ponds
4.2. Water & Wastewater Management
Reservoirs & canals (prevents water loss)
Sewage treatment lagoons
Potable water storage
4.3. Landfill & Environmental Protection
Landfill base & cap liners (blocks leachate migration)
Hazardous waste containment
4.4. Agriculture & Aquaculture
Fish & shrimp ponds ; Irrigation ponds
5. Performance of BPM PVC Geomembrane Liner in Zambia
Zambia’s mining and agricultural sectors extensively use PVC liners due to:
5.1. Mining Sector (Copperbelt Region)
Prevents Acid Mine Drainage (AMD): BPM’s 1.5mm–2.5mm PVC liners are used in copper and cobalt mine leach pads to prevent toxic chemicals from contaminating groundwater.
Cost Savings: Reduces remediation costs compared to traditional clay liners.
5.2.Agricultural Water Storage (Southern Province)

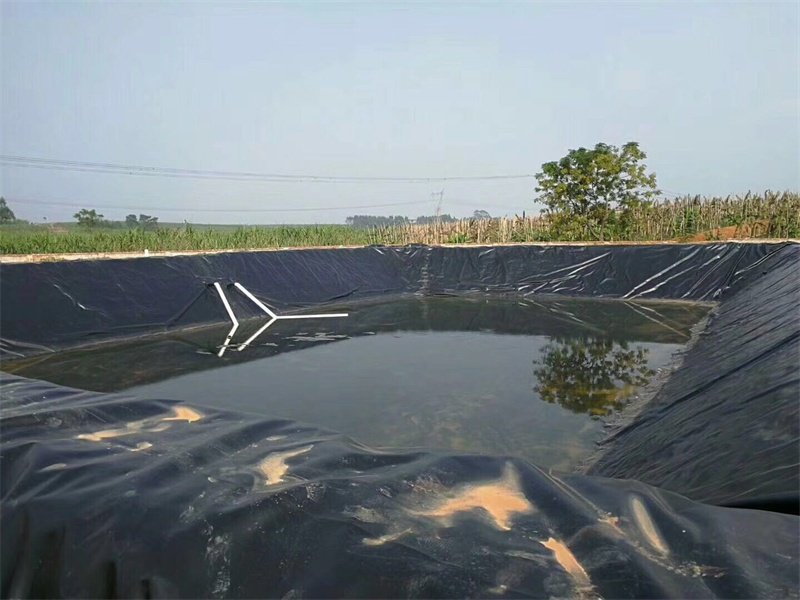

Reduces Water Loss: Farmers use 1.0mm–1.5mm PVC liners in irrigation ponds to combat drought conditions.
Durable in Harsh Climates: Resists UV degradation and extreme temperature fluctuations.
5.3. Municipal Landfills (Lusaka & Ndola)
Meets EPA & EU Standards: BPM’s 2.0mm PVC liners are approved for landfill applications, ensuring environmental compliance.

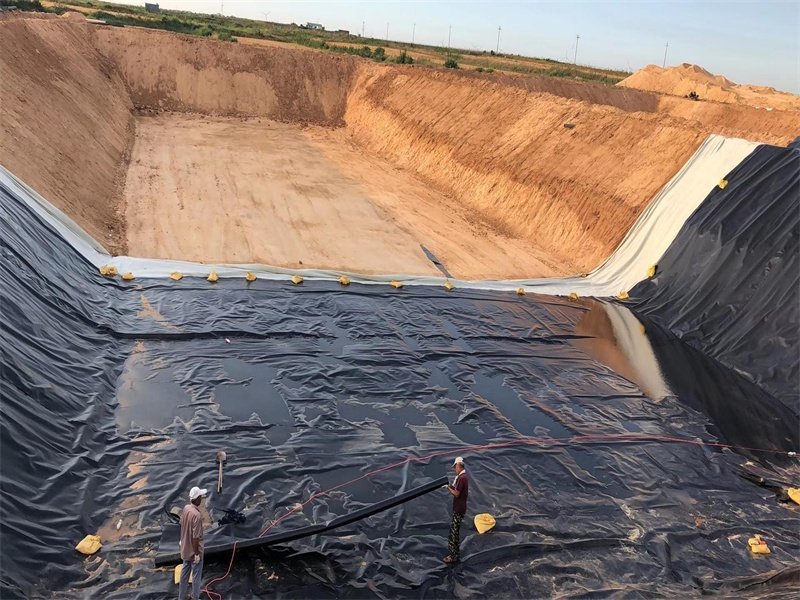

6.Installation Requirements for PVC Geomembrane Liner
6.1.Subgrade Preparation Remove sharp rocks, roots, and debris.
Compact soil to avoid punctures.
6.2.Welding & Seaming
Hot Wedge Welding: For long seams (requires skilled technicians).
Extrusion Welding: For repairs and complex corners.
6.3.Quality Control & Testing
Air Pressure Testing: Ensures seam integrity.
Destructive & Non-Destructive Testing (NDT): Confirms weld strength.
6.4.Protection Layer (Geotextile or Soil Cover)
Prevents UV degradation and mechanical damage.
7.Factors Influencing Thickness Selection
Environmental Stressors: Thicker liners offer better resistance to UV exposure, temperature fluctuations, and chemical contact.
Subgrade Conditions: Rough or uneven subgrades may require thicker liners to prevent puncture.
Regulatory Requirements: Certain applications, such as landfills, may have minimum thickness requirements set by regulatory bodies
8.Why Choose BPM PVC Geomembrane Liner?
Certified Quality: Meets GMP, ASTM, and ISO standards.
Custom Sizes: Available in 0.3mm–3.0mm thicknesses.
Global Supply: Exported to Africa, South America, and Asia.
BPM PVC liner geomembranes offer unmatched durability, chemical resistance, and cost efficiency, making them essential for mining, water storage, and landfill projects. BPM Geomembrane provides high-quality PVC liners that meet international standards, ensuring long-term performance in Zambia’s demanding environments.
BPM Geomembrane had been specialized in delivering one stop PVC liner geomembrana and other geosythetics to worldwide customers for over 14 years. In recent years, we had been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We had invested 10 million dollars into our manufacturing factory with advanced production lines and optimized manufacturing processes. BPM liner geomembranes, geosythetics and solutions can meet your requirements by our solid technologies and professional staffs.
BPM had provided many types of effective and states of the art geomembranes and other geosythetics to over 36 countries. Our main customers are from Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc.
