1. HDPE Liners: Core Basics for Cost Context

To understand HDPE liner investment considerations, it’s first critical to grasp what these materials are and why their specifications matter. This foundational context will help you interpret differences in investment levels and make informed sourcing decisions.

1.1 What Are HDPE Liners

HDPE liners are synthetic geomembranes manufactured via extrusion of high-density polyethylene resin. Their defining properties—low permeability, chemical resistance, high tensile strength, and weather durability—make them ideal for preventing fluid leakage in diverse applications. Common uses include:

• Landfill and waste containment
• Water storage
• Coastal and slope protection
• Industrial tanks and secondary containment for chemicals and oils

Unlike traditional clay liners or asphalt solutions, HDPE liners are lightweight, easy to install, and require minimal long-term maintenance—attributes that contribute to their overall value efficiency despite potentially higher initial investment.

2. Top 4Factors That Influence HDPE Liner Investment Levels

HDPE liner investment levels are not arbitrary. A combination of material, production, and market factors shapes them. Below are the six most impactful variables that will determine the investment required for HDPE liners:

2.1 Raw Material:

The quality of HDPE resin is the single biggest factor influencing liner investment levels. Resin accounts for 60-70% of the total production input, so differences in resin type and grade directly impact the final investment required:

2.1.1 Virgin HDPE Resin

Liners made from 100% virgin HDPE resin offer superior performance: higher tensile strength, better resistance to chemicals and UV radiation, and a longer service life (15-30 years). These liners require a higher investment than recycled alternatives and are mandatory for critical applications like drinking water reservoirs and hazardous waste landfills, where failure risks are high.

2.1.2 Recycled HDPE Resin

Recycled HDPE resin (sourced from post-consumer or post-industrial waste) is a value-oriented option for non-critical projects. While these liners are more budget-friendly, they have lower performance metrics—shorter service life (5-10 years) and reduced resistance to harsh chemicals. They’re ideal for temporary applications like agricultural drainage ditches or small decorative ponds.

Global oil prices also influence resin costs. In 2025, HDPE resin costs have seen an increase from 2023 due to supply chain pressures and energy costs. This uptick has directly translated to adjusted investment levels for HDPE liners across the market.

2.2 Liner Thickness & Performance Specifications

Thickness is the second most important factor influencing investment, as it directly correlates to raw material usage and production complexity. Additionally, performance specs like tensile strength and elongation further impact the required investment:

2.2.1 Thickness Ranges & Investment Impact

HDPE liners typically range from 0.5mm to 3.0mm in thickness. Here’s how thickness impacts investment levels

• 0.5mm-0.8mm: Budget-friendly (temporary projects, light-duty use)
• 1.0mm-1.5mm: Mid-range (most common; agricultural, residential ponds)
• 2.0mm-3.0mm: Premium (heavy-duty; landfills, large reservoirs)

Thicker liners not only use more resin but also require specialized production equipment, adding to manufacturing costs.

2.2.2 Tensile Strength & Elongation

Liners with higher tensile strength (ability to resist stretching) and elongation at break (ability to deform without tearing) require a higher investment. For example, liners with a tensile strength of ≥20 kN/m involve a greater investment than those with 10-15 kN/m. These high-performance liners are essential for projects with uneven terrain or potential soil movement, like slope protection.

2.2.3 Roll Dimensions (Width & Length)

Standard roll sizes (4-8m width, 50-100m length) are the most value-efficient because they minimize production setup time and transportation costs. Custom sizes—such as widths over 10m or lengths under 30m—require tailored manufacturing, which increases the required investment. For large projects, choosing standard sizes can significantly optimize overall procurement costs.

2.3 Production Processes & Value-Added Treatments

The manufacturing process and any additional treatments applied to HDPE liners also affect investment levels. Advanced processes and treatments enhance performance but require additional production input:

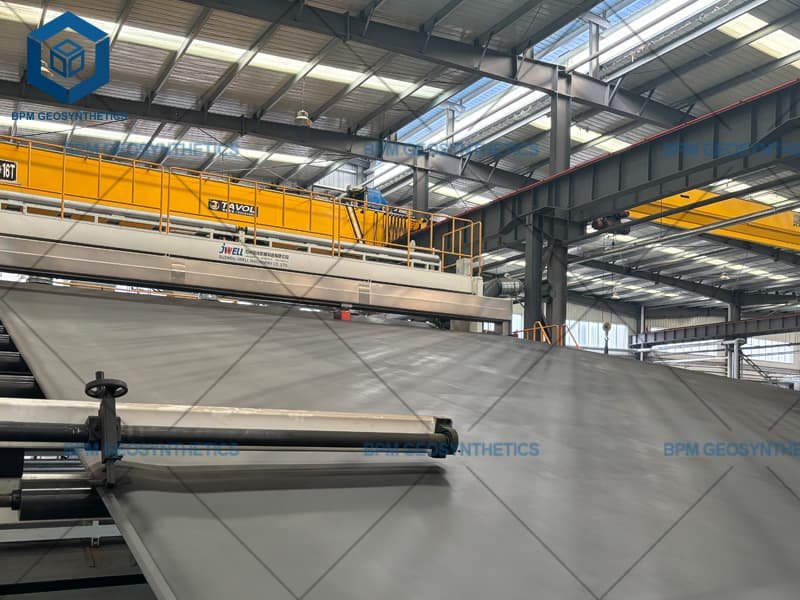

Extrusion-calendering is a premium production process that produces liners with uniform thickness and a smooth surface. These liners involve a higher investment than those made via blow molding, which can result in slight thickness variations. Extrusion-calendered liners are preferred for projects requiring precise fit and weldability, like industrial tanks.

2.4 Purchase Volume & Supplier Relationships

Your order size and the type of supplier you work with can lead to significant variations in investment levels. Procurement teams can leverage these factors to optimize procurement efficiency:

2.4.1 Volume-Based Value Optimization

Suppliers offer preferential terms for bulk orders, thanks to economies of scale. For example:

• Small order (e.g., 1,000 sqm): Standard procurement terms (1.0mm liner)
• Large order (e.g., 20,000+ sqm): Preferential procurement terms (1.0mm liner)

Consolidating orders across multiple projects or partnering with other buyers can help you qualify for more favorable terms.

2.4.2 Supplier Type

Purchasing directly from manufacturers eliminates intermediate markups, resulting in more favorable procurement terms than buying from distributors. However, manufacturers typically have higher minimum order quantities (MOQ: 1,000-5,000 sqm). Distributors offer lower MOQs (500-1,000 sqm) but with additional service-related costs. For small projects, distributors may be the only feasible option, but for large-scale needs, direct manufacturing partnerships are more value-efficient.
